From the 2024 UPC Illustrated Training Manual, Chapter 9 – VENTS
910.3 Vents. Each combination waste and vent system, as defined in Chapter 2, shall be provided with a vent or vents adequate to ensure free circulation of air. A branch exceeding 15 feet (4572 mm) in length shall be separately vented in an approved manner. The area of a vent installed in a combination waste and vent system shall be not less than one-half the inside cross-sectional area of the drainpipe served. The vent connection shall be downstream of the uppermost fixture.
In Figure 910.3a, the drain pipe is four inches. The vent must be at least half the area of the drain pipe. A 4-inch pipe has an area of 12.566 in2. Half of the area is 6.283 in2. This would require that the terminal vent and any relief vents must be 3-inches.

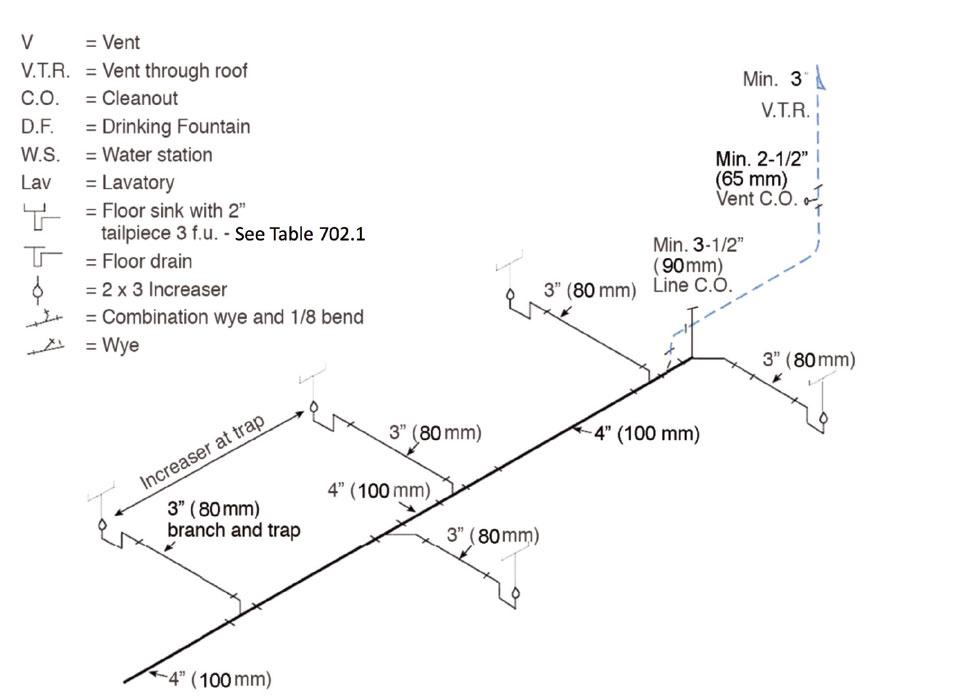

COMBINATION WASTE AND VENT WITH SINGLE VENT
This vent is sometimes called “the terminal vent.” It must be placed downstream of the uppermost fixture (see Figure 910.3a and 910.3b). This will provide a washing action to keep the base of the vent clear. The vent must take off above the center line of the waste. A low-use fixture, such as a drinking fountain, may be connected to the terminal vent. This will also help wash the vent clear.

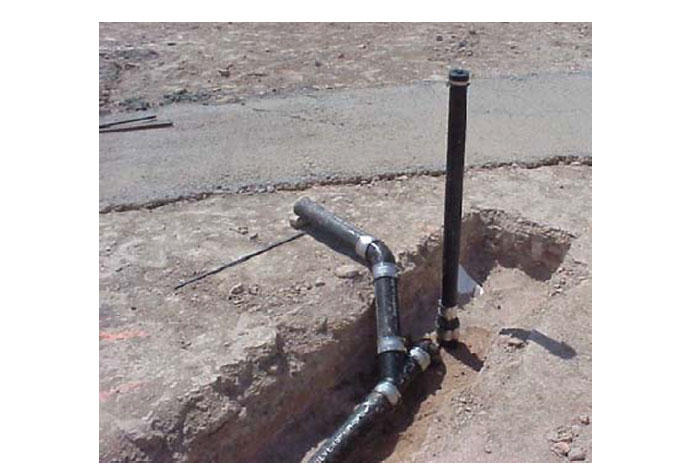

UNDERGROUND INSTALLATION OF TERMINAL VENT
From the 2024 UMC Illustrated Training Manual, Chapter 8 – CHIMNEYS AND VENTS
802.6.3.1 Occupiable Space. All appliances connected to the common vent shall be located in rooms separated from occupiable space. Each of these rooms shall have provisions for an adequate supply of combustion, ventilation, and dilution air that is not supplied from occupiable space. [NFPA 54:12.7.5.2] (See Figure 802.6.3.1)

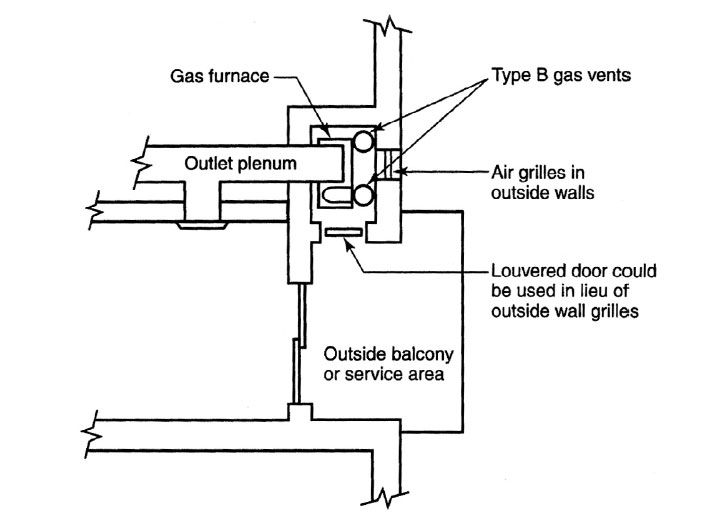

PLAN VIEW OF PRACTICAL SEPARATION METHOD FOR MULTISTORY GAS VENTING
[NFPA 54: FIGURE A.12.7.5.2]
Occupiable is an enclosed space intended for human activities excluding those spaces intended primarily for other purposes such as storage rooms and equipment rooms that are only occupied occasionally and for short periods of time. Occupiable spaces are more inclusive than habitable spaces and therefore increase the scope and occupancy types for the provisions of this section.
Appliances are to be separated from the occupiable space (shown in Figure 802.6.3.1). Further information on sizing vents that serve appliances on more than one floor of a building can be found in Sections 803.2.12 through 803.2.15.
(This is not to be considered the official position of IAPMO, nor is it an official interpretation of the Codes.)
